yachtSOFT.com  ...   innovation in marine products 406MHz EPIRBS
·   ACR Electronics ·



GLOBALFIX™ 406

406 MHz EPIRB with
Integral GPS

Available as Cat I or II





· Internal GPS engine allows faster 406 EPIRB location than standard, non-GPS-enabled models; can update position every 20 minutes

· New GPS engine provides faster aquisition time

· EPIRB has Circuitry, Battery Voltage and GPS Acquisition Test features built in, or can be fully tested at a BRC (See Glossary-Full Functional Self-Test)

·Patented proprietary electronics package for faster, more stable 406 frequency transmission

· Field Programmable at BRC equipped with FPR-100, FPR-10

· 48 hours operating life at -40°C (-40°F), allowing for monthly self-test for 5 years

· Lanyard coil retained with all around cover for non-tangling deployment

· Universal usage illustrations; English and French languages

· Mounting Bracket included with EPIRB purchase

· Transmits on 406 MHz (COSPAS-SARSAT) with your registered, unique, digitally-coded distress signal, and 121.5 MHz (SAR homing frequency)

· Built-in strobe for enhanced location in poor visibility conditions

· Single, three-position switch for easy test of battery, EPIRB and GPS operation. Steady green LED indicates unit has passed full functional EPIRB test. Flashing red LED indicates unit is "ON"

· Can be manually activated; self-buoyant - no external float collar to lose

· High impact plastic case designed to withstand exposure to UV rays, oil, sea water and raft packing

· 5-year limited factory warranty

· 5-year replacement life lithium battery

Size (including antenna):   17.5 x 6.25 x 5.5 in. (44.5 x 15.4 x 14.0 cm)
Weight:   4.5 lbs. (2.0 kg)

Material: High impact polycarbonate blend case/polyethylene bracket
Color: Hi-Viz Yellow/White bracket
Deployment: Automatic, hydrostatic release or manual
Operation: Lift switch up, slide left, push back and down fully, breaking tab; water activated when out of bracket
Waterproof: 33 ft (10 m)
Certification: COSPAS-SARSAT, FCC, USCG, European MED
U.S. Patent Number U.S. Pat. No. 6,501,340
Limited Warranty: 5 years
Battery Type: Lithium - 5-year replacement life
Modulation: AM
Radiated Power: 5 watts +2dB (406 MHz) 50 mW +3dB (121.5)
Operating Life:

TOP

48 hours @ -40°C (-40°F)

RapidFix™ 406

406 MHz EPIRB with
GPS Interface

Available as Cat I or II



  • GPS Interface – optical data interface via Infrared diode (NMEA 0183): New, flashing LED in GPS optical interface confirms data transmission from GPS; downloaded GPS coordinates confirmed by flashing LEDs within three seconds of completing self-test sequence
  • Fastest means available of delivering GPS position
  • Patented proprietary electronics package for faster, more stable 406 frequency transmission; full functional self-test including battery voltage and internal circuitry
  • Field programmable at BRC equipped with FPR-100, FPR-10
  • Lanyard coil retained with all around cover for non-tangling deployment
  • Universal usage illustrations; English and French languages
  • Built-in strobe for enhanced location in poor visibility conditions
  • Single, three-position switch for easy test and operation. Steady green LED indicates unit has passed full functional test, flashing red LED indicates unit is “ON”
  • Transmits on 406 MHz (COSPAS-SARSAT) with your registered, digitally-coded distress signal, and 121.5 MHz (SAR homing frequency)
  • Can be manually activated; self-buoyant – no external float collar to lose
  • Exclusive, polycarbonate blend designed for maximum resistance to UV and chemicals; maximum durability when exposed to extreme temperatures or shock
  • 5-year limited factory warranty
  • 5-year replacement life (11-year useful life) lithium battery
  • Operating life – 48 hours @ -40ºC (-40ºF)
Size: 3.7 x 7.2 x 4.3 in (9.4 x 18.3 x 10.9 cm)
Antenna: 7.4 in (18.8 cm)
Weight: 2 lbs. (900 g)
Material: High impact polycarbonate blend case
Color: Hi-Viz Yellow
Deployment: Manual
Operation: Lift switch up, slide left, push back and down fully, breaking tab;
water activated when out of bracket
Waterproof: 33 ft (10 m)
Accessories: 1096 Battery replacement kit (available to BRCs only)
Certification: Approved by COSPAS-SARSAT, FCC, USCG, other International approvals
Limited Warranty: 5 years
Carton Dimensions: 4.5 x 5.2 x 8.2 in (11.5 x 13.0 x 21.0 cm)
Units Per Carton: 1
Carton Weight: 2.10 lbs. (1 kg)
Frequency: 406 MHz, 121.5 MHz
Battery Type: Lithium 5-year replacement life (11-year storage life)
Modulation: AM
Radiated Power: 5 watts ± 2dB (406 MHz) 50 mW ± 3dB (121.5 MHz)
Operational Life: 48 hours @ -40ºC (-40ºF)

TOP

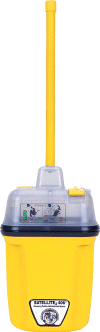

Satellite2 406™

406 MHz EPIRB

Available as Cat I or II



  • World's smallest 406 MHz EPIRB approvable worldwide
  • Built in strobe for enhanced location in poor visibility conditions
  • Single, three position switch for easy test and operation. Steady green LED indicates has passed full functional test, flashing red LED indicates unit is "ON"
  • Transmits on 406 MHz (COSPAS-SARSAT) with your registered, digitally-coded distress signal, and 121.5 MHz (SAR homing frequency)
  • Can be manually activated; self-buoyant - no external float collar to lose
  • Lanyard coiled on recessed spool for non-tangling deployment
  • Exclusive, polycarbonate blend designed for maximum resistance to UV and chemicals; maximum durability when exposed to extreme temperatures and shock
  • High impact plastic case designed to withstand exposure to UV rays, oil, sea water and raft packing
  • Field programmable - built-in vessel code can be reprogrammed by any ACR Authorized Service Center world wide (Maritime/Serialized/Radio Call Sign/MID Protocols, Country Code, etc.)
  • Product label includes universal test/operation symbols, English and French languages, plus ability to substitute other foreign languages
  • 5 year limited factory warranty
  • 5 year replacement life (11 year useful life) lithium battery
  • Operating life:  48 hours @ -40°C (-40°F)
Size: 3.7 x 7.2 x 4.3 in (9.4 x 18.3 x 10.9 cm)
Antenna: 7.4 in (18.8 cm)
Weight: 2 lbs (900 g)
Material: High impact polycarbonate blend case
Color: High-viz optic yellow
Deployment: Manual
Operation: Lift switch up, slide left, push back and down fully breaking tab. Also water activated when out of bracket
Waterproof: 33 ft (10 m)
Accessories: 9372 Low Pro surface mounting bracket;
1096 Battery replacement kit (available to BRCs only)
Certification:  Approved by COSPAS-SARSAT, FCC, USCG, Other international approvals
Limited Warranty: 5 years
Carton Dimensions: 4.5 x 5.2 x 8.2 in (11.5 x 13.0 x 21.0 cm)
Units Per Carton: 1
Carton Weight: 2.10 lbs (1 kg)
Frequency:  406 MHz, 121.5 MHz
Battery Type: Lithium 5  year replacement life (11 year useful life)
Modulation: AM
Radiated Power: 5 watts ± 2dB (406 MHz) 50 mW ± 3dB (121.5 MHZ)
Operational Life: 48 hours @ -40°C (-40°F)

TOP




AquaFix™ 406

"Personal
EPIRB"

406 MHz P-EPIRB with
Integral GPS or GPS Interface

  • Transmits on 406 MHz via the COSPAS-SARSAT satellite system with your registered unique, digitally coded distress signal and 121.5MHz (SAR local homing frequency).

  • Onboard GPS (P/N 2797.4 only) acquires LAT/LON when the unit is activated, your LAT/LON is transmitted as soon as acquired providing rescue agencies with your exact position to within 100 meters (110 yards).

  • GPS Interface (NMEA 0183) allows you to download your GPS coordinates from a hand-held GPS receiver into your P-EPIRB; when activated, your LAT/LON will accompany your 406 MHz signal on the first burst, dramatically saving valuable time for your distress message to reach local rescue centers.

  • Smallest and most functional P-EPIRB available so it can be easily carried in a pack or on a life jacket; small enough to wear on deck by yachting racers, crew, solo cruisers, or any marine enthusiast

  • Removable holster provides functionality, style and protection for your P-ELT; holster allows for multiple mounting options on backpacks, webbing, and life vests.

  • Full functional self test of internal circuitry, battery power, 406 MHz transmission, and GPS* acquisition (*P/N 2797.4 only).

  • Flat, stainless steel antenna wraps compactly around the unit for easy stowage; is easily positioned when needed.

  • Floats to avoid loss if dropped in water, exceeds RTCM waterproof requirements.

Size:    1.74 x 5.71 x 3.03 in (4.4 x 14.5 x 7.7 cm)
Weight: 12 oz. w/o holster; 13.3 oz with holster
Operational LIfe: In excess of 24 hours @ -20°C (-4°F), longer in higher ambient temperatures.
Batteries Type:  Two lithium battery packs (2,500 mAmp Hours @ -20°C); 5 year replacement life (11 year storage)
Storage Temp.: -40°C to +70°C (-58°F to +158°F)
Radiated Power: 5 watts ± 2dB (406 MHz) / 50 mW ± 3dB (121.5 MHz)
Material: Engineered resilient impact polymer
Color: Chartreuse with blue holster
Deployment: Manual
Operation: Deploy antenna, press both test buttons simultaneously
Accessories: PLB holster, GPS interface cable, bulk head mount
Certification: FCC Approved (Model:PLB-200/201)
Limited Factory Warranty:

TOP

5 years



TO ORDER:

or call:

1(800)483-8100, or

1(516)482-8800
